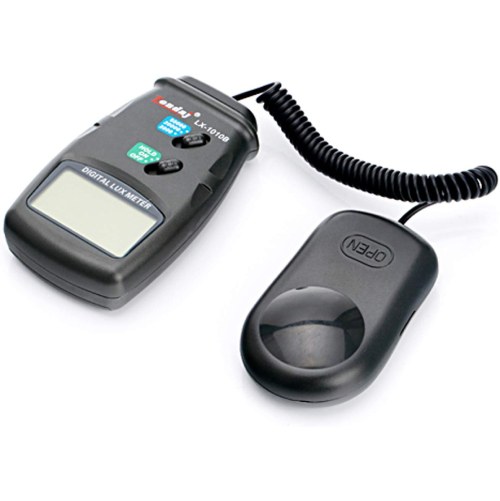

Lux Meter
SPECIFICATIONS |
|
| Display | 3 1/2 digits LCD display, maximum reading value display 1999 |
| Ranges | 1-50,000Lux |
| Resolution | 1Lux |
| Accuracy | ≤10,000Lux: ±4%rdg±0.5f.s ≥10,000Lux: ±5+10digits(Calibrated to standard incandescent lamp at color temperature 2856K) |
| Repeatability | ±2% |
| Temperature Characteristic | ±0.1%/℃ |
| Test rate | 0.4 sec |
| Photo detector | one silicon photo diode with filter |
| Operation temperature-humidity | -10℃ to 40℃(32℉-104℉) 0～70%Rh |
| Storage temperature-humidity | -10℃ to 50℃(14℉-140℉) 0～80%Rh |
| Over-input | indication of “1” (2,000Lux/20,000Lux) Indication of “OVER” (100,000Lux) |
| Dimension | 106×57×26mm(photo detector) 230×72×30mm(meter body) 150cm (photo detector lead ) |
| Weight | 190g |
| Power Supply | one 9V battery, Consumption current approx.2mA |
| Accessorie | Instruction-manual, battery, carry case |
