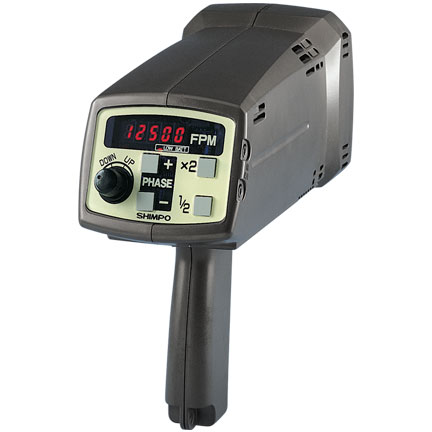

Stroboscope
SPECIFICATIONS |
|
| MODEL | DT- 725(DC) |
| FLASHING RANGE | 40 — 12,500 FPM (Flashes Per Minute) |
| ACCURACY | ±0.02% of reading |
| RESOLUTION | 0.1 ,40.0 –4,999.9 FPM 0.2 ,5,000.0 –7,999.8 FPM 0.5 ,8,000.0 –9,999.5 FPM 1.0 , 10,000.0– 12,500.0 FPM |
| DISPLAY | 5-Digit LED, 0.3" (8 mm) height |
| RATE | Divide by 2, Multiply by 2 |
| UPDATE TIME | Ext. mode: varies with flashing rate |
| OPERATING TIME | 1 hour when fully charged |
| FLASH TUBE POWER/LIFE | Xenon, 10 W, 100 million flashes |
| FLASH DURATION | 10 - 15 μs |
| SIGNAL OUTPUT | NPN Open Collector (24 VDC max.,50 mA) 150 μs typical |
| PHASE SHIFT | Internal mode only by using the “+”and “–” switches |
| EXT. TRIGGER INPUT SIGNAL | a) 12-24 VDC thru a 3-wire NPN outputsensor (requires external power supply) b) 12 VDC thru a 2-wire proximitysensor (leakage current 1 mA max.,Load current 8 mA min.) c) Switch or Relay contact |
| LOW BATTERY INDICATOR | Yes |
| OPERATING TEMPERATURE | 32° – 104° F (0 – 40° C) |
| DIMENSIONS | 9" L x 4.3" W x 8.5" H(Height includes handle) |
| WEIGHT | 2.75 lbs (1.25 Kgs) |
