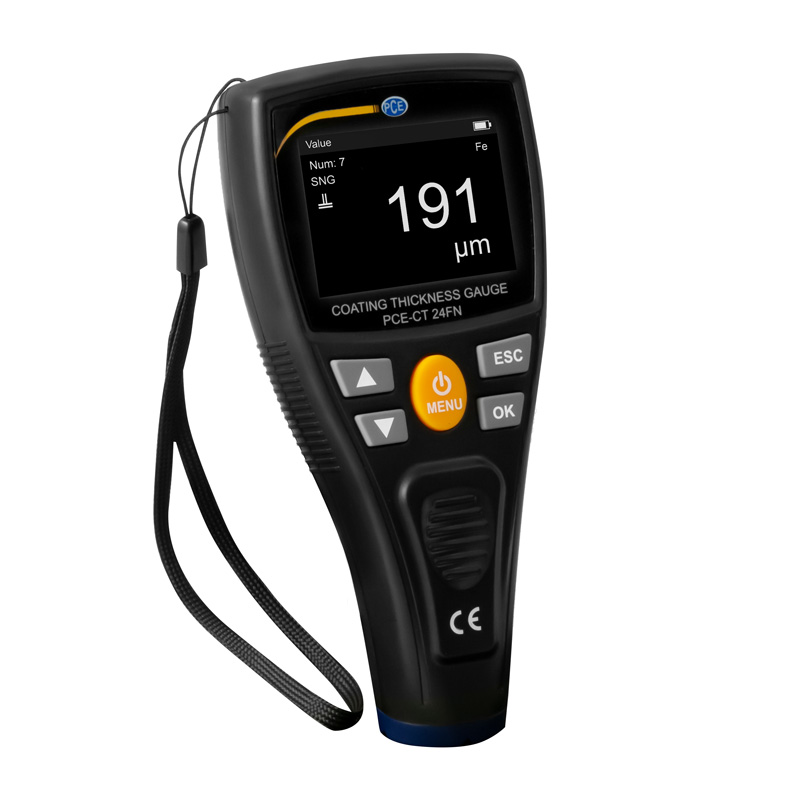

Thickess Gauge
SPECIFICATIONS |
|
| Measuring range | 0 ... 1500 μm / 0 ... 59 mil / 0 ... 1.5 mm |
| Resolution | 0.1 μm (at <100 μm) 1 μm (at> 100 μm) 0.001 mm 0.1 mil |
| Accuracy | ± 5 μm (at <150 μm) ± 3% + 1 μm (at> 150 μm) |
| Smallest diameter (Fe) | 12 mm |
| Smallest thickness (Fe) | 0.5 mm |
| Curve wheel. minute (Fe) | Convex. 2 mm; concave: 11 mm |
| Smallest diameter (nFe) | 50 |
| Smallest thickness (nFe) | 0.5 mm |
| Storage | 100 groups of 15 readings each |
| Display | 2.25 inch LC display |
| Ambient temperature | 0 ... 50°C / 32 ... 122°F |
| Power supply (batteries) | 3 x 1.2V AA Ni-MH 800 mAh |
| Power supply (power supply) | Primary: 100 ... 240V; 50/60 Hz; 0.45 A Secondary side: 5V DC; 1 A |
| Dimensions | 70.3 x 38.6 x 149.59 mm / 2.8 x 1.5 x 5.9 in |
| Weight | Approx. 136.9 g / < 1 lb with batteries |
