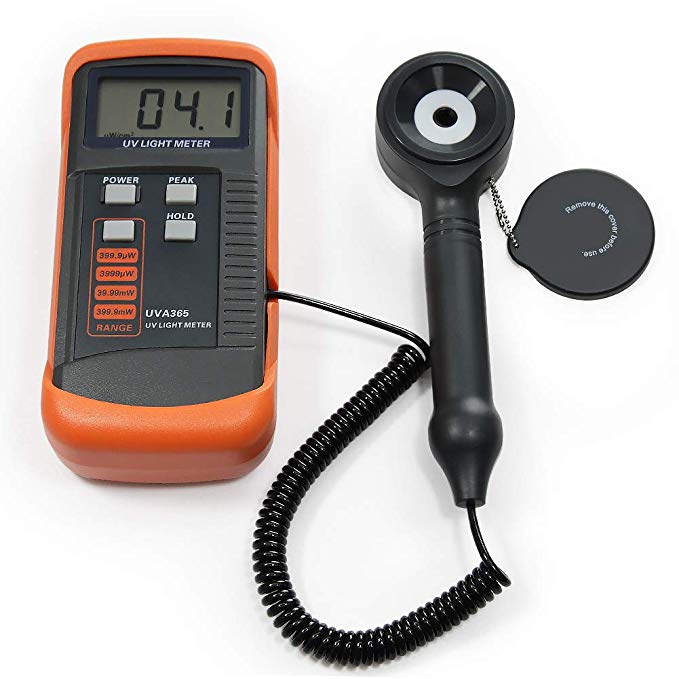

UV Light Meter
SPECIFICATIONS |
|||||||||
| Display | 3 3/4 LCD display, maximum reading 39990 | ||||||||
| Measurement Range | 0-400 mW/cm2 Four range selectable 400 μW, 4000 μW, 40 mW, and 400mW(1000 μW/cm2 = 1 mW/cm2) |
||||||||
| UV sensor spectrum | bandpass 320 nm-390 nm | ||||||||
| Accuracy | ±(4%FS + 2dgt) Calibration under the standard UVA light & and compare;Special tested under the environment RF Field Strength less than 3V/M & frequency less than the 30 MHz only | ||||||||
| Sensor structure | exclusive UV photo diode & UV color correction filter | ||||||||
| Sample Time | 2.5 times/s. | ||||||||
| Over Range indication | "OL" | ||||||||
| Weight | 325g(include battery) | ||||||||
| Operating Temperature & Humidity | -10ºC to 40ºC(32ºF-104ºF) 0~70%Rh | ||||||||
| Power Supply | DC 9V battery, 006P, MN 1604 (PP3) or equivalent. | ||||||||
| Power Consumption | Approx. DC 2.7 mA | ||||||||
| Dimension | 165x50x32mm (photo detector),160x78x43mm (meter body) | ||||||||
