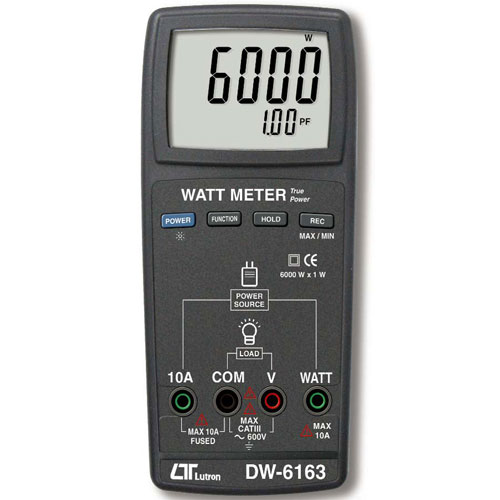

Watt Meter
SPECIFICATIONS |
|
| Display Specification | |
| Display | Large LCD display max. reading 9999. Digit size : 21.8 x 8.5 mm. Dual value display with backlight |
| Summary | |
| Measurement Unit | ACV 0 to 600.0 V ACA 0.01 to 10.00 A WATT 0 to 6000 W PF 0.01 to 1.00 |
| Sampling Time | Approx. 1 second . |
| Operation Temperature | 0℃ to 50℃ ( 32℉ to 122℉). |
| Weight | 398 g |
| Circuit | Custom one-chip of microprocessor LSI circuit. |
| HARDWARE FEATURES | |
| Power Supply | Alkaline or Heavy duty type DC 9V battery 006P , MN1604 (PP3) or equivalent. |
| General Specification | |
| Operation Humidity | Less than 80% RH |
| Over Input | ” —- ” mark indication . |
| Zero | Automatic adjustment |
