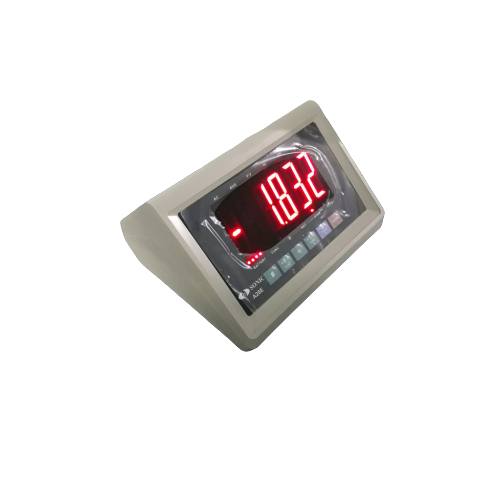

Sonic A28E
SPECIFICATIONS |
|
| Power Supply | AC 230 V / 50 Hz , DC 6V/4Ah ( Lead battery inside) |
| Operating temperature | 00 C ~ 400 C |
| Storage and transport temperature | – 250 C ~ 550 C |
| Relative humidity | ≤ 85% RH |
| Fuse | 500 mA Input signal range -19mV ~ 19mV |
| Conversion speed | More than 10 times/s |
| Nonlinearity | 0.0015% |
| Gain drift | 0.03% |
| Gain drift | 0.03% |
| Bridge voltage | DC 5V |
| Sensor connection | 1-4 350Ω sensors |
| Indication range | -99999 ~ 999999 (decimal point is not considered) |
