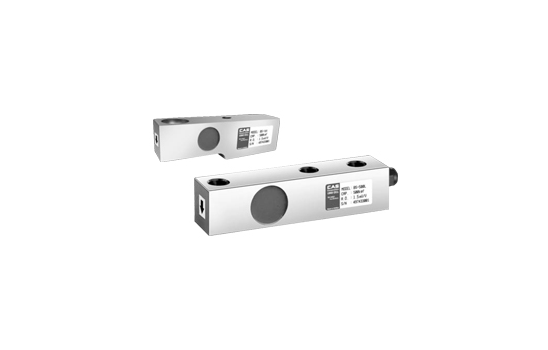

CAS BS
SPECIFICATIONS |
||
| Max. Capacity | 250, 500kfg | 1, 2, 3, 5, 10tf |
| Rated Output | 1.5 ± 0.0037mV/V | 2.0 ± 0.005mV/V |
| Zero Balance | 0 ± 0.015mV/V | 0 ± 0.02mV/V |
| Combined Error | 0.03%RO | |
| Repeatability | 0.01%RO | |
| Creep for 30 min | 0.03%RO | |
| Temperature Effect on : Zero Value Output Value |
0.028%RO/10°C 0.015%RO/10°C |
|
| Excitation : Recommended Maximum |
10V 15V |
|
| Resistance : Input Output Insulation |
400 ± 20Ω 350 ± 5Ω ≥ 2.000MΩ |
|
| Compensated Temperature Range | – 10 ~ 40°C | |
| Operating Temperature Range | – 20 ~ 80°C | |
