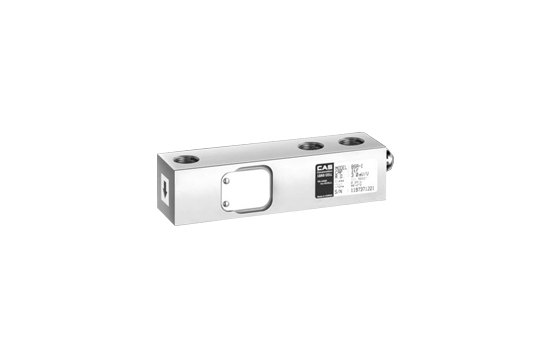

CAS - BSA
SPECIFICATIONS |
||
| Max. Capacity | 250kg-2000kg dan 3t-5t | |
| Rated Output | 3.0 ± 0.0075mV/V | |
| Zero Balance | 0 ± 0.03mV/V | |
| Accuracy Class | D3 | C3 |
| Combined Error | 0.03% | 0.025% |
| Repeatability | 0.01% | 0.01% |
| Creep for 30 min | 0.03% | 0.017# |
| Temperature Effect on : Zero Value Output Value |
0.028%/10°C 0.015%/10°C |
0.014%/10°C 0.011%/10°C |
| Excitation : Recommended Maximum |
10V 15V |
|
| Resistance : Input Output Insulation |
350 ± 3.5Ω 350 ± 3.5Ω ≥ 2.000MΩ |
|
| Compensated Temperature Range | – 10 ~ 40°C | |
| Operating Temperature Range | – 30 ~ 80°C | |
