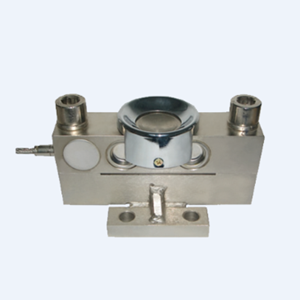

MK QS
SPECIFICATIONS
|
| Rated Capacities (Emax) |
25 & 30t |
| Temperature, compensated |
-10°C ~ +40°C |
| Rated Output |
2.0±0.002m V/V |
| Temperature, operating |
-30°C ~ +70°C |
| Accuracy class |
C3 |
| Maximum Safe Overload |
150%F.S |
| Creep Error (30 min)) |
± 0.03% FS |
| Ultimate Overload |
180%F.S |
| Zero Balance |
± 1% FS |
| Excitation, Recommended |
10 ~ 12V DC |
| TC Zero |
±0,02%F.S/10°C |
| Excitation, Maximum |
15V DC |
| TC Span |
± 0.02% FS/10°C |
| Protection Class |
1P67 |
| Input Resistance |
400 ± 20Ω |
| Output Resistance |
352 ± 3Ω |
