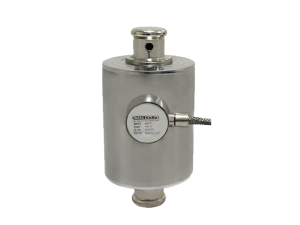

MK HPT
SPECIFICATIONS
|
| Rated capacities (Emax) | 30, 45t | Temperature, compensated | -10°C -+40°C |
|---|
| Rated output | 2.0±0.003m V/V | Temperature, operating | -30 -+70°C |
| Total error | ±0.03%F.S | Maximum safe overload | 150%F.S |
| Creep error (30 min) | ±0.02%F.S | Ultimate overload | 200%F.S |
| Zero balance | ±1%F.S | Excitation, recommended | 10-12V DC |
| TC ZERO | ±0.02%F.S/10°C | Excitation, maximum | 15V DC |
| TC SPAN | ±0.02%F.S/10°C | Protection class | IP68 |
| Input resistance | 750±10Ω | Construction | High Quality Alloy Steel |
| Output resistance | 702±3Ω | Cable | Length: 10m |
| Insulation resistance | ≥5000MΩ | | Diameter: Φ6mm |
