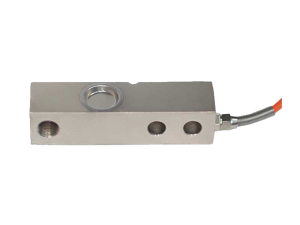

MK SBR
SPECIFICATIONS
|
| Rated Capacities (Emax) |
1, 1.5, 2, 2.5t |
Temperature, Operating |
-30°C ~ +70°C |
| Rated Output |
3.0 ± 0.003mV/V |
Maximum Safe Overload |
150% FS |
| Total Error |
± 0.03% FS |
Ultimate Overload |
250% FS |
| Creep Error (30 min) |
± 0.02% FS |
Excitation, Recommended |
10 ~ 12V DC |
| Zero Balance |
± 1% FS |
Excitation, Maximum |
15V DC |
| TC Zero |
± 0.02% FS/10°C |
Protection Class |
IP68 |
| TC Span |
± 0.02% FS/10°C |
Contruction |
Nickel plated steel |
| Input Resistance |
400 ± 10Ω |
Cable |
Length : 3m |
| Output Resistance |
352 ± 3Ω |
Diameter : Φ 6mm |
| Insulation Resistance |
≥ 5000MΩ |
|
|
